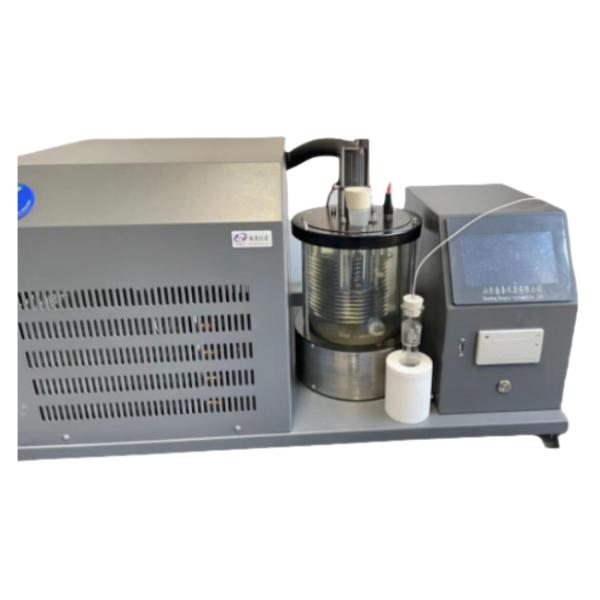

SH2539B Automatic paraffin melting point tester
SH2539B automatic paraffin melting point tester is in line with the national standard GB/T 2539, ASTM D87, ISO 3841 design and production, double temperature double bath this instrument is according to the national standard GB/T 2539-81, international standard ISO 3841 and the American standard ASTM D87 "paraffin melting point (cooling curve) determination method" specially designed and manufactured for the instrument requirements.Suitable for measuring the melting point of paraffin wax.Not suitable for the determination of microcrystalline waxes and greasy paraffin products
Instrument features
Embedded system design, using imported PT100 temperature sensor, automatic detection throughout the test;Color touch screen;The test results can be stored;You can view historical data;The instrument prints the results, the experimental results can be exported through the U disk, stored in the computer can be compared for many times.
Instrument function
● Paraffin melting point tester cold bath box for double hole single temperature, compressor refrigeration, cold temperature can be set arbitrarily
● Paraffin melting point tester adopts compressor refrigeration.
● The sensor adopts PT100, with high temperature sensitivity and resolution, strong anti-interference and high temperature control precision.
● The instrument compressor is small in size, light in weight, stable in operation, no vibration, very suitable for laboratory use.
Instrument indicators
| Standard |
GB/T 2539 ASTM D87 ISO 3841 |
| Cooling method |
Compressor cooling |
| Temp control range |
0℃ ～ 120℃ Adjustable arbitrarily |
| Display mode |
Color touch screen display |
| Number of test holes |
Single hole |
| Temp control accuracy of bath |
±0.01℃ |
| Ambient temp |
0℃ ～ 35℃ |
| Relative humidity |
≤80% |
| Power supply |
220V±10% 50HZ |
| Whole power |
800W |
| Instrument size |
580*420*480mm |
| Instrument weight |
42kg |
● Storage method: The experimental results can store 199 sets of historical data for easy retrieval;
● Result output: It can also be equipped with a USB drive output function to output to the computer for long-term storage
Output format: The output format of the result USB drive is CSV or Excel
● Standard printing: Standard micro printer, automatic measurement, automatic thermal printing
● Data memory: The memory of the microcomputer instrument can be expanded to 16GB.
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If there are any updates to the instrument, they may be slight changes without prior notice.
Packing list
| S/N |
Name |
Quantity |
Unit |
Remarks |
| 1 |
Host |
1 |
Set |
|
| 2 |
Test bottle rubber stopper |
1 |
Piece |
|
| 3 |
Melting point test tube |
1 |
Piece |
|
| 4 |
Sensor |
2 |
Piece |
|
| 5 |
Power cord |
1 |
Piece |
|
| 6 |
Instruction |
1 |
Copy |
|
| 7 |
Packing list |
1 |
Copy |
|
| 8 |
Certificate warranty card |
1 |
Copy |
|
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet national quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Product Tags:
|
|
Single Hole Automatic Paraffin Melting Point Tester 0℃ ～ 120℃ Dual-Temperature ASTM D87 Images
|
