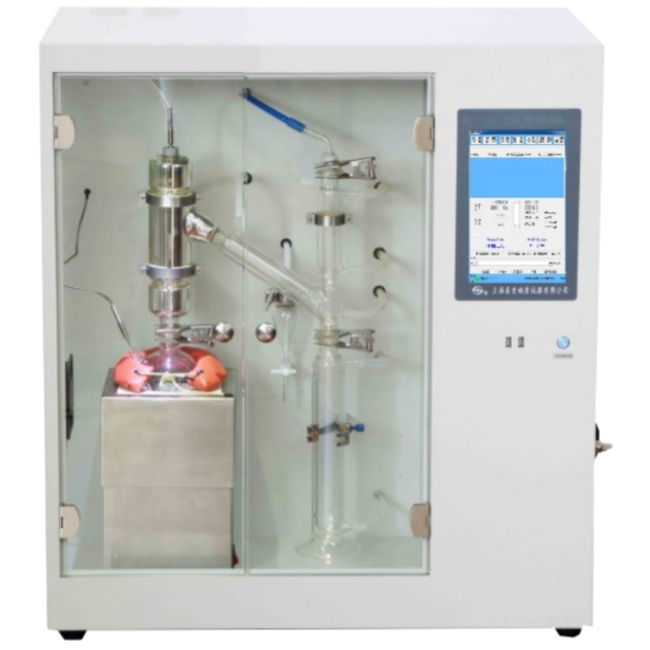

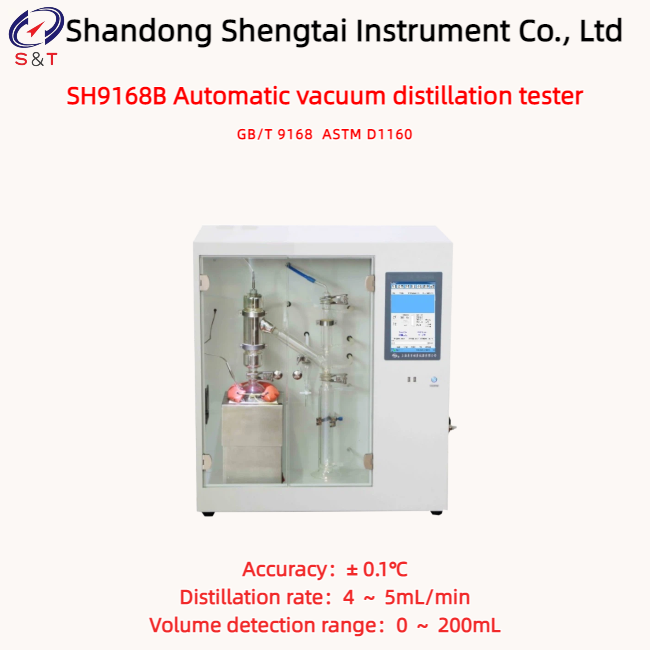

SH9168B Automatic vacuum distillation tester
Vacuum Distillation Tester of Petroleum Products with High Boiling Point Range
ASTM D1160 Automatic Reduced Pressure Vacuum Distillation Tester
Automatic Vacuum Distillation Tester
Automatic Vacuum Distillation Tester for Distillation Characteristics of Petroleum Products with High Boiling Point Range by Vacuum Process
Standard: GB/T 9168 ASTM D1160
SH9168B automatic vacuum distillation tester is a special test instrument designed and manufactured according to the standard GB/T 9168 and ASTM D-1160 of the People's Republic of China. It can partially or completely evaporate the boiling point range of petroleum products.
This instrument is automatic decompression distillation measuring instrument, with heating device and refrigeration device, equipped with imported liquid level sensor, automatic tracking liquid level, the selection of imported compressor refrigeration, 7 inch touch screen display data, experimental data saved after the completion of the experiment, and can print the experimental results of data.
Performance characteristics:
● The heating and cooling, liquid level tracking, temperature recording, printing and other automatic completion of the measurement process.
● Built-in miniature thermal printer automatically report the test results, one key to complete the determination.
● The testing process complies with the standard provisions and the data is reliable.
The method is reliable and reproducible.
● Imported infrared liquid level detection is not affected by indoor light interference, accurate recovery reading.
Technical parameters
| Display mode |
Embedded industrial grade color touch screen |
| Refrigeration method |
German imported compressor refrigeration |
| Temp range |
-40℃ ～ RT or RT ～ 500°C |
| Accuracy |
± 0.1℃ |
| Heating method |
electric heating unit, maximum heating power 800W |
| Temp sensor |
PT100 glass probe imported from Germany |
| Cooling method |
Compressor cooling |
| Distillation rate |
4 ～ 5mL/min |
| Volume detection range |
0 ～ 200mL |
| Working power supply |
AC220V 50Hz |
| Instrument size |
1000 * 600 * 1630mm |
| Instrument weight |
65kg |
| Packaging size |
1200 * 780 * 1780mm |
| Packaging weight |
85kg |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
Packing list
| S/N |
Name |
Quantity |
Unit |
Remarks |
| １ |
Host |
1 |
Set |
|
| ２ |
Sensor |
3 |
Piece |
|
| 3 |
Vacuum pump4L/S |
1 |
Set |
|
| 4 |
Vacuum tube |
1.5 |
Meter |
|
| 5 |
Vacuum gauge |
1 |
Set |
|
| 6 |
Vacuum distillation flask |
1 |
Piece |
|
| 7 |
Vacuum jacket distillation column assembly |
1 |
Set |
|
| 8 |
Receiver |
1 |
Piece |
|
| 9 |
thermometer -2～400℃ |
1 |
Piece |
|
| 10 |
Silica gel tubeφ6*9 |
2 |
Meter |
|
| 11 |
Cylinder connection |
1 |
Piece |
|
| 12 |
Certificate |
1 |
Copy |
|
| 13 |
Instructions |
1 |
Copy |
|
