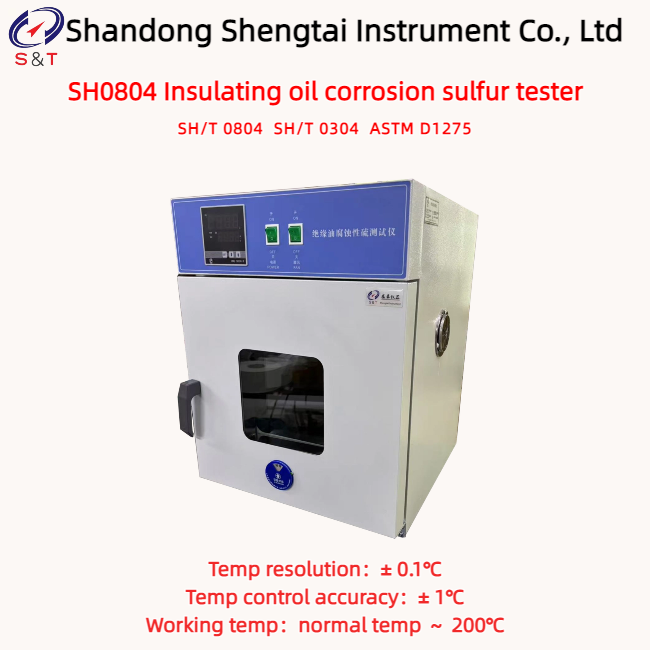

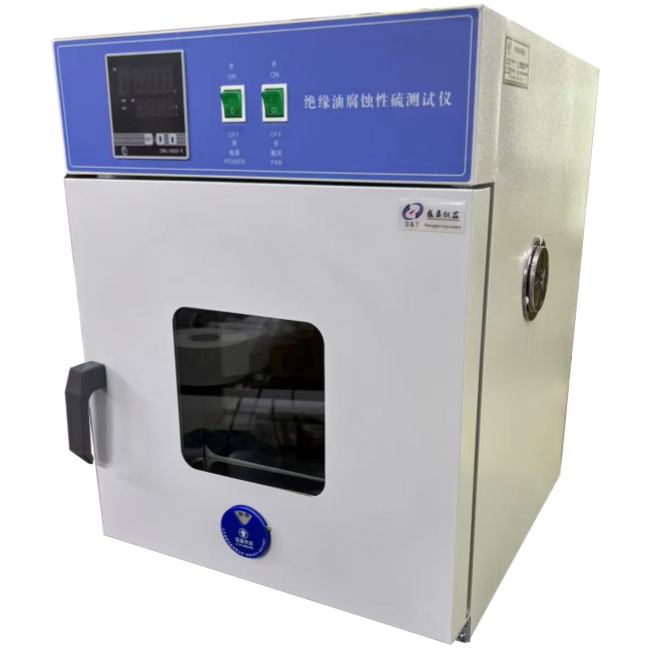

SH0804 Insulating oil corrosion sulfur tester
Standard: SH/T 0804 SH/T 0304 ASTM D1275
Insulating oil corrosion sulfur analyzer normal temp ～ 200℃ PT100 sensor ASTM D1275
SH0804 electrical insulation oil corrosive sulfur analyzer is designed and manufactured according to the SH/T0804 standard; Test method for detecting corrosive sulfur in mineral insulating oil used in power equipment that affects the operation of electrical equipment.
Performance Features
● The surface of the instrument is treated with electrostatic spray, anti-corrosion and easy to clean
● Stainless steel heating box, transparent observation window, easy operation, the top of the hole inserted thermometer, circular drum mode
● Microcomputer temperature control, PT100 sensor, PID digital display, high temperature control accuracy
● Digital display timer, accuracy deviation per hour is no more than 2 minutes to record the test time, with time alarm
Technical parameters
● The surface of the instrument is treated with electrostatic spraying, which is corrosion-resistant and easy to clean.
| Execution standards |
SH/T 0804 SH/T 0304 ASTM D1275 |
| Working temp |
normal temp ～ 200℃ |
| Temp control accuracy |
± 1℃ |
| Temp resolution |
± 0.1℃ |
| Timing range |
1 ～ 9999min |
| Temp control method |
microcomputer temperature control, using PT100 sensor, PID digital display |
| Standard silver test piece |
Cold rolled, 20 * 40 * 0.5mm, purity 99.99
Standard copper sheet, purity 99.9%, thickness 0.125-0.250mm, angle 60°
|
| Working power supply |
AC220V 50Hz |
| Power |
1.5KW |
| Instrument size |
450 * 510 * 620mm |
| Instrument weight |
17.6kg |
| Packaging size |
520 * 620 * 690mm |
| Packaging weight |
20kg cardboard box |
Note: The appearance pictures, dimensions, volume, and weight of the instrument are for reference only. If there are any updates to the instrument, there may be slight changes without prior notice.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
Packing list
| S/N |
Name |
Quantity |
Unit |
Remarks |
| 1 |
Host |
1 |
Set |
|
| 2 |
Standard silver test piece |
2 |
Piece |
|
| 3 |
Standard copper sheet |
2 |
Piece |
|
| 4 |
100ml ground neck flask |
2 |
Piece |
With plug |
| 5 |
250ml ground mouth bottle |
2 |
Piece |
|
| 6 |
Temperature sensor |
1 |
Piece |
On the instrument |
| 7 |
Power cord |
1 |
Root |
|
| 8 |
Instruction Manual |
1 |
Copy |
|
| 9 |
Packing List |
1 |
Copy |
|
| 10 |
Certificate of Conformity Warranty Card |
1 |
Copy |
|
