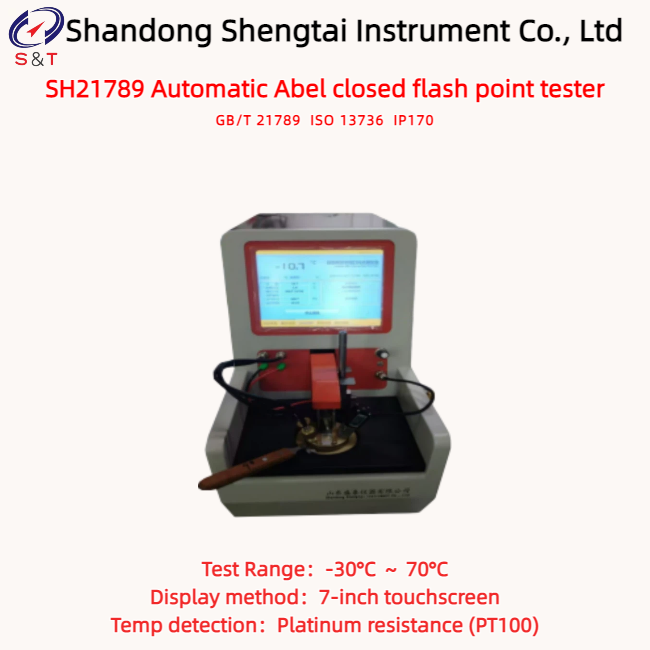

SH21789 Automatic Abel closed flash point tester
SH21789 Automatic Abel Closed Cup Flash Point Determinator is designed and manufactured in accordance with the requirements specified in the national standard GB/T 21789 "Determination of Flash Point of Petroleum Products and Other Liquids (Abel Closed Cup Method)" and ISO 13736. It is suitable for determining the flash point of petroleum products and other liquids with a range between -30°C and 70°C.
Instrument features: Designed with an embedded system, equipped with imported PT100 temperature sensors for automatic monitoring throughout the testing process; features a color touch screen; capable of storing test results; allows viewing of historical data; prints results directly on the instrument.
Technical Parameters
| Applicable standards |
GB/T 21789 ISO 13736 IP170 |
| Test Range |
-30°C ～ 70°C |
| Temp detection |
Platinum resistance (PT100) |
| Display method |
7-inch touchscreen |
| Cooling method |
Compressor circulation refrigeration |
| Heating rate |
1℃/min |
| Display Accuracy |
0.1°C |
| Mixing speed |
0.5r/s (30r/min) |
| Ignition method |
Electronic ignition or gas ignition |
| Ambient temp |
10 ～ 40°C |
| Relative humidity |
≤8℃ |
| Host power consumption |
1800W |
| Working power supply |
AC 220V±10% 50Hz |
| Instrument dimensions |
490*450*580mm |
| Instrument weight |
40kg |
| Packaging dimensions |
560*550*680mm |
| Packaging weight |
45kg |
● Air Pressure Detection: Equipped with an air pressure detection device, capable of automatically adjusting atmospheric pressure
● Standard printing features: Standard mini printer, automatic measurement, and automatic thermal printing
Note: The appearance, dimensions, volume, and weight of the instrument are for reference only. If the instrument is updated, there may be slight changes without prior notice.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Packaging of goods: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
Packing list
| S/N |
NAME |
Quantity |
UNIT |
remarks |
| 1 |
Host |
1 |
Set |
|
| 2 |
Fuse |
1 |
Piece |
|
| 3 |
Test cup |
1 |
Piece |
|
| 4 |
Test cup cover |
1 |
Set |
|
| 5 |
Temperature sensor |
1 |
Piece |
|
| 6 |
Directions |
1 |
Copy |
|
| 7 |
Packing list |
1 |
Copy |
|
| 8 |
Certificate warranty card |
1 |
Copy |
|
