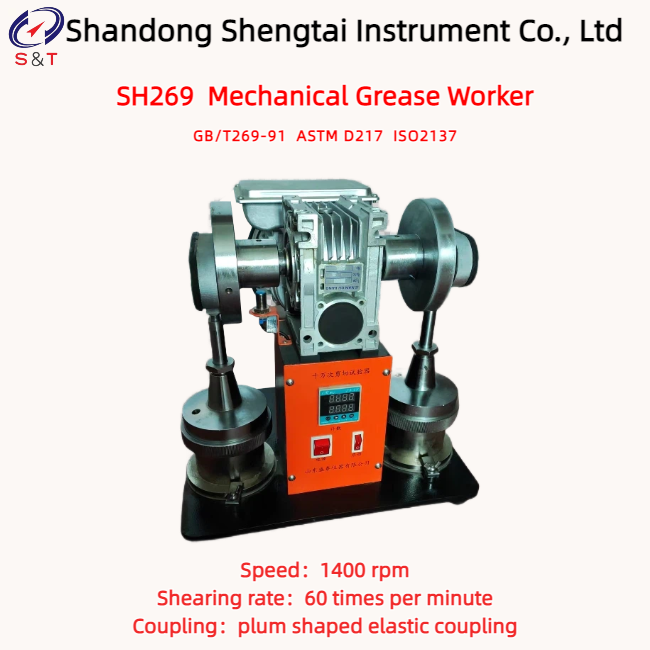

SH269 Mechanical Grease Worker
Standard: GB/T269-91 ASTM D217 ISO2137
SH269 Grease Worker according to GB/T269-91 "Grease and petroleum grease cone penetration determination" test standard requirements in the specified test conditions, after the change of mechanical shear work to judge the mechanical stability of grease, to extend the work cone penetration or shear stability, the unit is 0.1mm.
Performance characteristics:
● The use of motor drive reducer to achieve 60 times/min shear rate
● Extended coning test and optional shear stability test
● The display can display the cutting times by itself
● Counter can count by itself
● The whole instrument structure is compact and complete
Technical parameters:
| Motor |
Horizontal single-phase capacitor-start motor |
| Speed |
1400 rpm |
| Coupling |
plum shaped elastic coupling |
| Worm gear reducer |
Features a dual-output shaft reducer with a gear ratio of 25:1, equipped with a pair of eccentric mechanisms installed on the worm gear shafts on both sides of the reducer |
| Shearing rate |
60cpm |
| Maximum counting capacity |
999,999 |
| Grease worker working stroke |
67-71mm |
| Diameter of each hole on the orifice plate |
Ф6.35+0.13 |
| Power Supply |
AC 220V 50Hz |
| Power |
370W |
| Instrument dimensions |
350*320*380mm |
| Instrument weight |
40kg |
| Packaging dimensions |
490*440*420mm |
| Weight |
42kg |
Note: The appearance images and dimensions of the instrument are for reference only. Updates to the instrument may result in minor changes, and no further notice will be provided.
Packing list
| S/N |
Name |
Quantity |
Unit |
Remarks |
| 1 |
Host |
1 |
Set |
|
| 2 |
Power cord |
1 |
Piece |
|
| 3 |
Instructions |
1 |
Copy |
|
| 4 |
Packing list |
1 |
Copy |
|
| 5 |
Certificate warranty card |
1 |
Copy |
|
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Goods packaging: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
