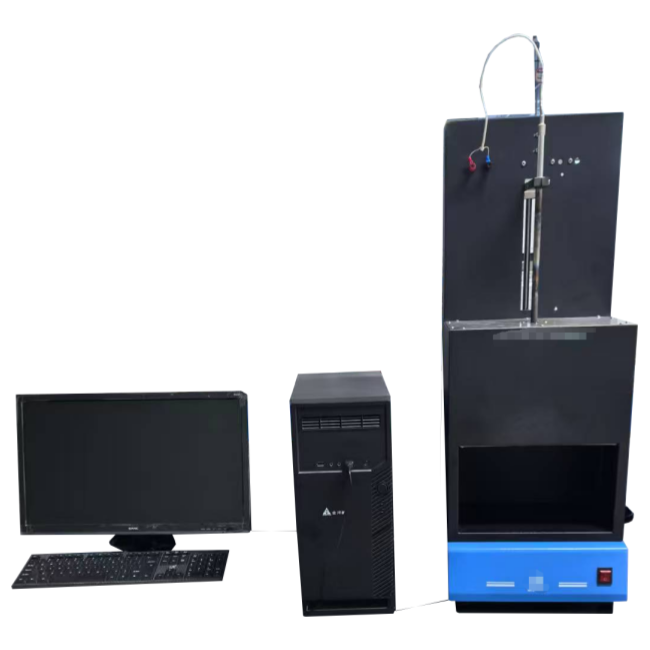

SH0220 Quenching Oil Cooling Performance Tester
Standard: SH/T 0220 ISO 9950 JB/T 7951
The SH0220 Quenching Oil Cooling Performance Tester is strictly designed and manufactured in accordance with the SH/T 0220 standard for determining the cooling performance of heat treatment oils. It is used to measure the maximum cooling rate and cooling time of quenching oils and other heat treatment oils. It is suitable for testing the cooling performance of water-based and oil-based cooling media under laboratory standard conditions, including the maximum cooling rate, the temperature at which the maximum cooling rate occurs, the cooling rate at 300°C, the time required to cool to 600°C, the time required to cool to 400°C, and the time required to cool to 200°C.
Main technical specifications, parameters, and performance features:
| Heating method |
The furnace body heating is PID self-tuning, automatically adjusted |
| Temp Range |
RT ～ 900°C |
| Furnace cavity dimensions |
no less than Φ25*200mm |
| Probe Type |
Silver Probe |
| Curve Display |
Graph showing temperature over time |
| Medium container |
300ml |
| Lifting mechanism |
automatic lifting |
| Printing function |
Automatically prints temperature-time curves and cooling characteristics |
| Working power supply |
AC 220V±10% 50Hz |
| Power consumption |
2000W |
| Packaging dimensions |
480*430*590mm |
| Weight |
35kg |
Note: The appearance, dimensions, volume, and weight of the instrument are for reference only. Minor changes may occur if the instrument is updated, and no separate notice will be provided.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Goods packaging: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
Package list
| Number |
Name |
Quantity |
Unit |
Note |
| 1 |
Host |
1 |
Set |
|
| 2 |
Silver probe |
1 |
Piece |
|
| 3 |
Media container |
1 |
Piece |
|
| 4 |
Power cord |
1 |
Strip |
|
| 5 |
User Manual |
1 |
Copy |
|
| 6 |
Packing List |
1 |
Copy |
|
| 7 |
Certificate of Conformity Warranty Card |
1 |
Copy |
|
Product Tags:
|
|
Quenching Oil Cooling Performance Analyzer RT ～ 900°C Silver Probe ISO 9950 Images
|
