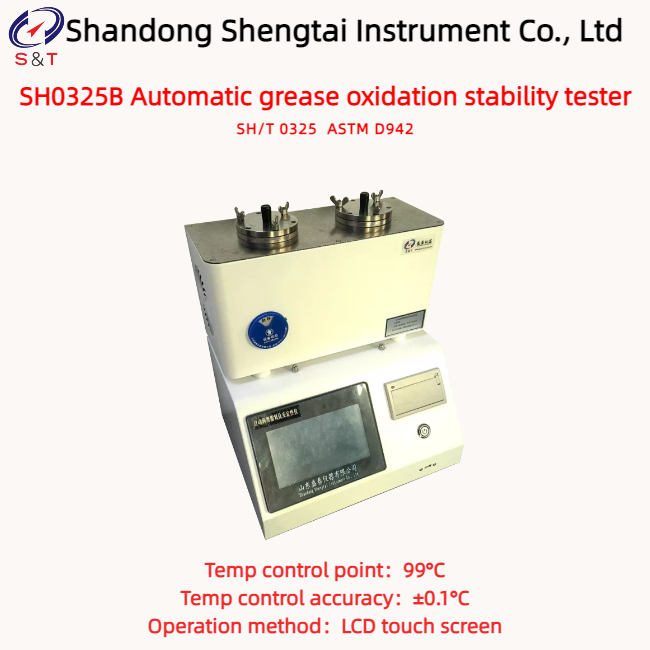

SH0325B Automatic grease oxidation stability tester
SH0325B Fully Automatic Grease Oxidation Stability Tester complies with the requirements of the SH/T 0325 "Test Method for Oxidation Stability of Grease" and ASTM D942, and is suitable for determining the oxidation stability of grease stored statically in an oxygen-sealed system.
The system automatically performs pressure testing, data recording, and oxidation time calculation on the tested oil sample, and can terminate the test automatically. While displaying the test curve and results on the screen, it also saves them automatically, allowing the operator to print as needed
Technical specifications
| Power supply |
AC 220V±10% 50Hz |
| Heating power |
1500W |
| Temp control point |
99°C |
| Temp control accuracy |
±0.1°C |
| Operation method |
LCD touch screen |
| Sensor |
Pt100 (Platinum Resistance) |
| Bath tank holes |
2 holes |
| Environment temp |
5 ～ 40°C |
| Relative humidity |
≤85% |
| Instrument dimensions |
375*300*425 mm |
| Instrument weight |
11.2 kg |
| External packaging dimensions |
430*360*485 mm |
| Outer packaging weight |
20kg carton |
Note: The appearance, dimensions, volume, and weight of the instrument are for reference only. Updates to the instrument may involve minor changes, and no further notice will be provided.
Instrument Quality Assurance Certificate
Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:
----The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
----The materials and main components provided meet the technical requirements specified in the technical documentation;
----The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
----We are responsible for free maintenance of any instrument quality issues that occur during the warranty period. Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
----Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
----After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
Packaging and Delivery
1. Goods packaging: standard wooden or cardboard boxes.
2. Internal packaging: Elastic pearl cotton packaging product, hardwood board+strong bandage to fix corners.
Packing list
| S/N |
Name |
Quantity |
Unit |
Remarks |
| 1 |
Host |
1 |
set |
|
| 2 |
Oxygen bomb |
2 |
Piece |
|
| 3 |
Laboratory dish |
10 |
Piece |
|
| 4 |
Power cord |
1 |
Piece |
|
| 5 |
Instructions |
1 |
Copy |
|
| 6 |
Packing list |
1 |
Copy |
|
| 7 |
Certificate warranty card |
1 |
Copy |
|
Product Tags:
|
|
ASTM D942 2 Holes Automatic Grease Oxidation Stability Tester Temp Control Point 99°C Images
|
